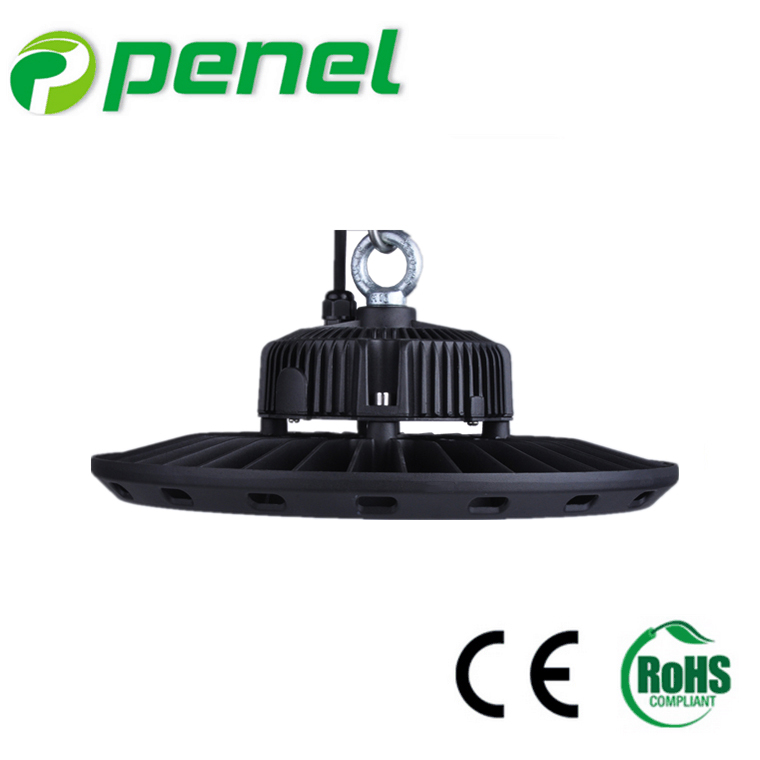

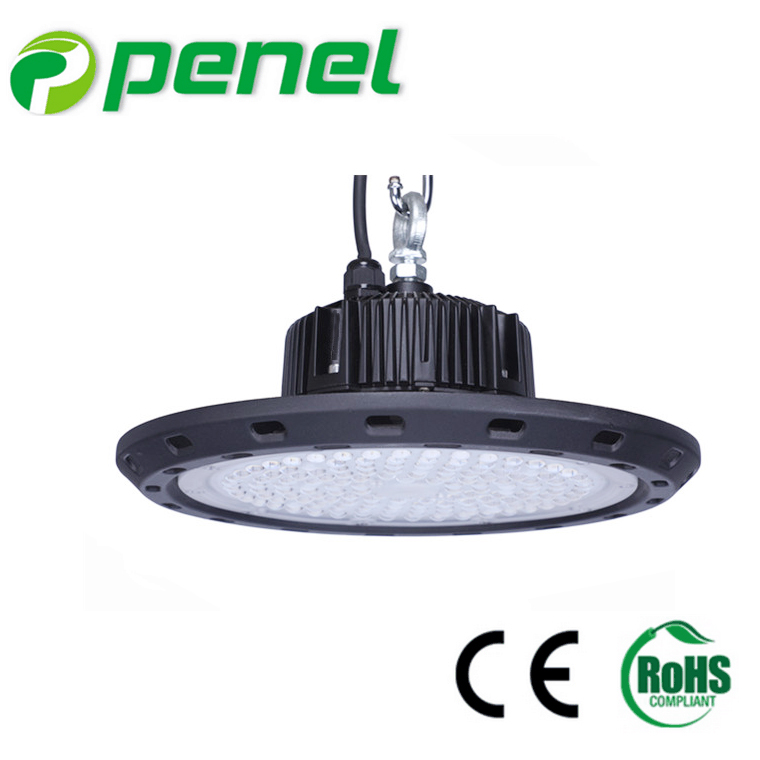

Product Body Parameters :
Dimension : 340mm diameter
IP rating : IP65
Housing color : Black
Housing : Aluminum
Connect Wire: L Power line N Null line G Earth line
Beam angle available : 60/90 degrees (by PC lens) or 120 degrees (by clear PC cover)
Light source : 210pcs of SMD 3030 chips
led /chip brand : C ree / Epistar
Driver brand :PENEL / Meanwell
Electrical Parameters:
Input : AC100-305V
Power : 150Watt
PF:>0.95
Driver efficiency :93%
Optical Parameters:
Lumen efficiency:150 lm/w
Total lumen : about 22500 lumens
Color temperature: 3000K/4000K/ 5000K/ 6000K
CRI:>70
Beam angle :60/90 degrees (by PC lens) or 120 degrees (by clear PC cover)
Lifetime: 50,000 hr
Installation mode：With round driver ,with ring for hanging installation
Certificate:CE-EMC, CE-LVD, ROHS
Warranty: 5 years
During the warranty period , if the led lights have any quality problems ,
we will surely slove the problems in the following way :
a. If the driver or chip is faulty , we will send new drivers or chips for free replacement .
b. If the lamp itself has problem , if convenient for customer to repair ,
we will send detailed instructions with pictures step by step ,
and if necessary send materials for free replacment, and help customer finally repair the lamp .
c. If the lamp itself has problem but difficult for customer to repair , we will send new lamp for free replacement .
d. If we found the faulty lamps quantity is more than normal level, we will assign engineers to go to buyer's company to check and repair all of the faulty lamps .
If the lamp is damaged due to user's misuse , for example : using outdoor , wrong installation, colliding or fall down ,etc ,
we can repair the lamp but need to charge the costs of materials replaced.
Aging test:
Application:
LED High Bay Light is widely used in work shop, factory, high -way check point, exhibition center, gym, gas station, parking lot ext.
Packing Parameters:
1pcs /carton
Packing Dimension :320mm*320mm*200mm
Gross Weight:3.5kg
Packaging Details: offter OEM services.can print your own logo on product,
can customize the retail box packing and other things.
