LED High Bay Light

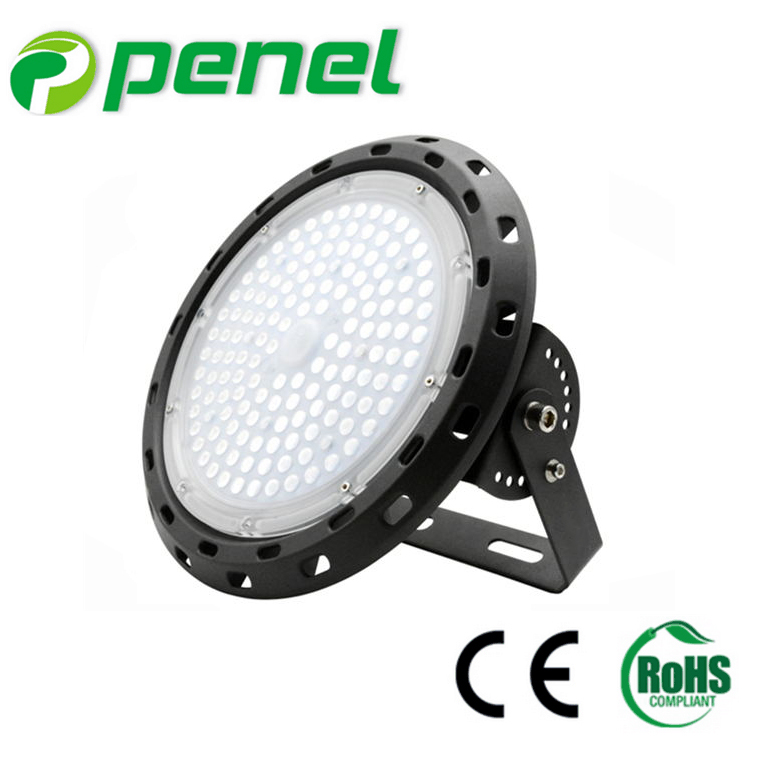

100W UFO Circular LED High Bay light 150lm/w for industrial lighting

Item No.: HBL-100W-NS03
It's a very popular led high bay light by worldwide customers, fashionable circular shape design , with high illumination efficiency up to 150lm/w , IP65 waterproof, very good choice for industrial lighting like warehouse, workshop factory etc.
Add to Inquiry
Description

Product Body Parameters :

Dimension  : 290mm diameter

IP rating :  IP65

Housing color :  Black
Housing : Aluminum

Connect Wire:  L    Power line    N    Null line      G    Earth line

Beam angle available : 60/90 degrees (by PC lens) or 120 degrees (by clear PC cover)

Light source : 140pcs of  SMD3030 chips

led /chip brand : C ree / Epistar

Driver brand : PENEL / Meanwell



Electrical Parameters:

Input : AC100-305V

Power : 100Watt

PF:>0.95

Driver efficiency : >90%



Optical Parameters:

Lumen efficiency: 150 lm/w

Total lumen : about 15000 lumens

Color temperature: 3000K/4000K/5000K/6000K

CRI:>70

Beam angle : 60/90 degrees (by PC lens) or 120 degrees (by clear PC cover)

Lifetime: 50,000 hr

Installation mode:With round driver ,with ring for hanging installation

Certificate :CE-EMC, CE-LVD, ROHS

Warranty:   5 years
During the warranty period , if the led  lights have any quality problems ,
we will surely slove the problems in the following way :
  a.  If the driver or chip is faulty , we will send new drivers or chips for free replacement .
  b.  If the lamp itself has problem , if convenient for customer to repair ,
        we will send detailed instructions with pictures step by step ,
        and if necessary send materials for free replacment, and help customer finally repair the lamp .
  c.  If the lamp itself has problem but difficult for customer to repair , we will send new lamp for free replacement .
  d.  If we found the faulty lamps quantity is more than normal level, we will assign engineers to go to buyer's company to check and repair all of the faulty lamps .
  If the lamp is damaged due to user's misuse , for example : using outdoor , wrong installation, colliding or fall down ,etc ,
  we can repair the lamp but need to charge the costs of materials replaced.

Aging test:



Application:
LED High Bay Light is widely used in work shop, factory, high -way check point, exhibition center, gym, gas station, parking lot ext.

Packing Parameters:

1pcs /carton

Packing Dimension :320mm*320mm*200mm

Gross Weight:3.5kg

Packaging Details: offter OEM services.can print your own logo on product,

  can customize the retail box packing and other things.
