Product Body Parameters :

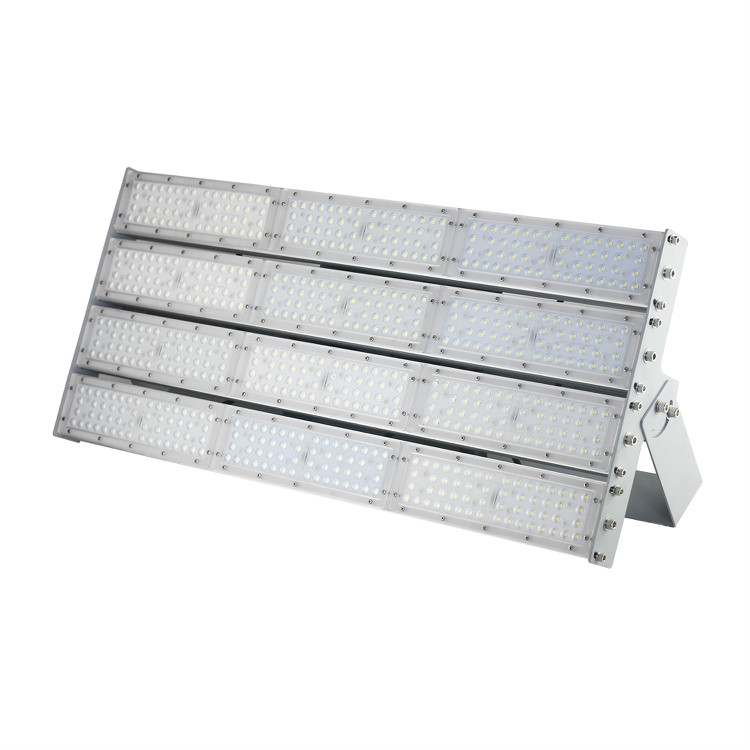

4 rows x 3 module each
Dimension: 526*538*200mm
IP rating: IP65
Housing color: gray
Housing: Aluminum
Light source for each module:56pcs of SMD3030 chips
Driver Brand: PENEL / Meanwell

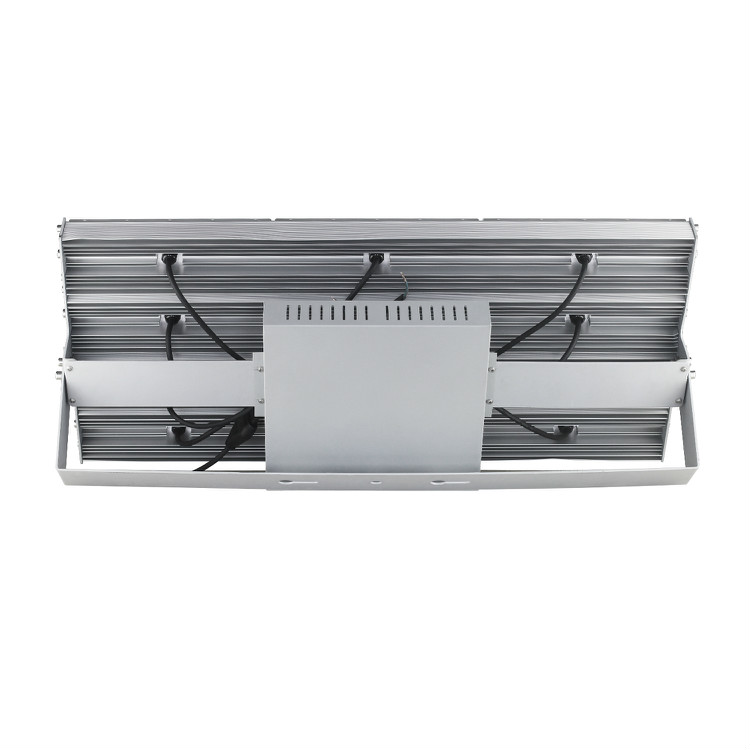

With Driver box (to avoid driver totally external)
Electrical Parameters:
Input:200-305VAC (If need 90-305VAC input ,should use HLG series)
Power: 600Watt
PF:>0.95
Driver Efficiency: 92%
THD: <15% at full load
Optical Parameters:
Luminous Efficiency : 135 lm/w
Working temperature:-20°C ~60°C
Color Temperature: 3000K /4000K/5000K/6000K
CRI :>70 or >80 or >90
Lens beam angle : 4 options (30, 60 ,90 , 70x140 degrees)
Lifetime: 50,000 hr
Certificate: CE-EMC, CE-LVD, ROHS
Warranty: 3 years (with PENEL driver) / 5 years (with MW driver)
