LED Flood Light

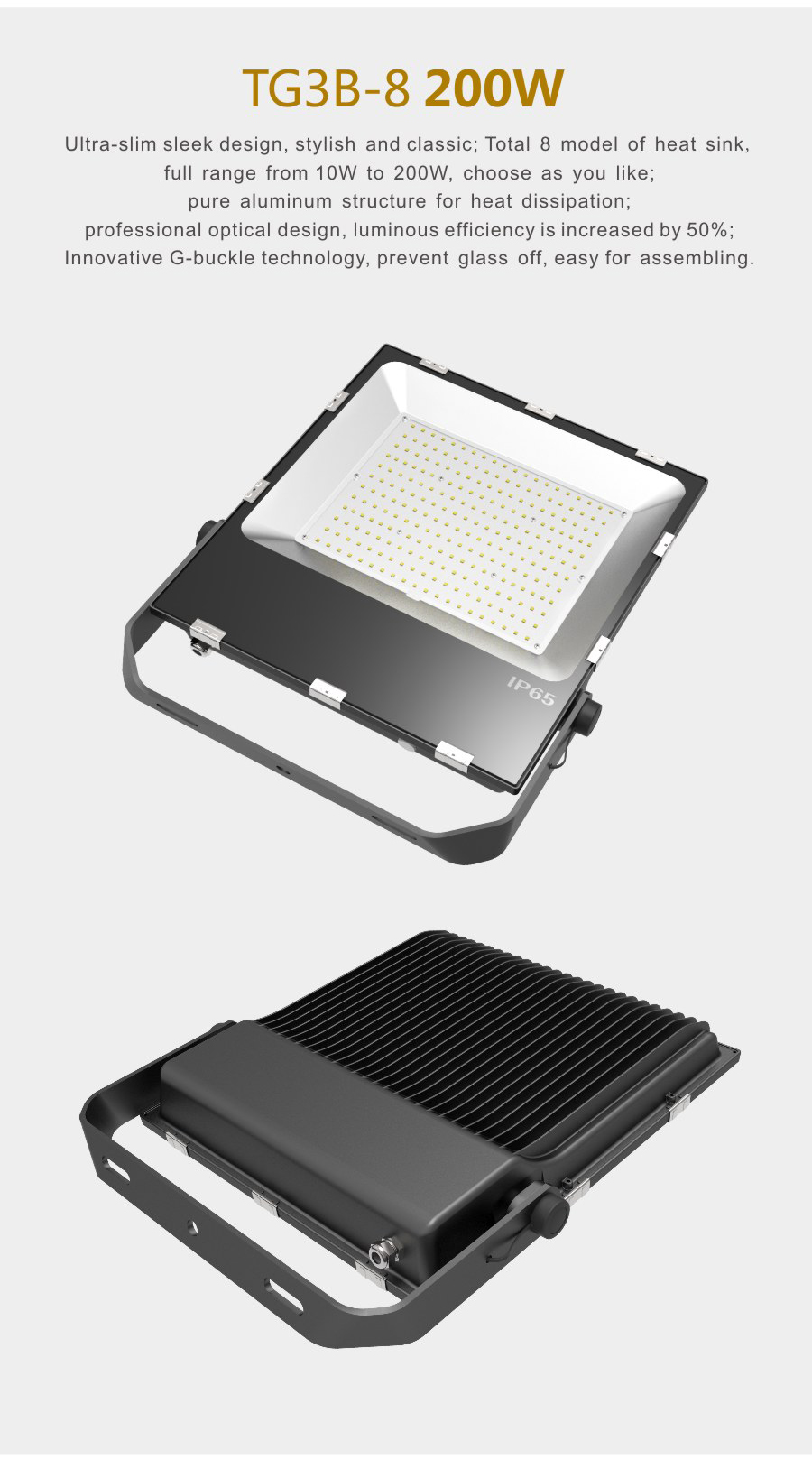

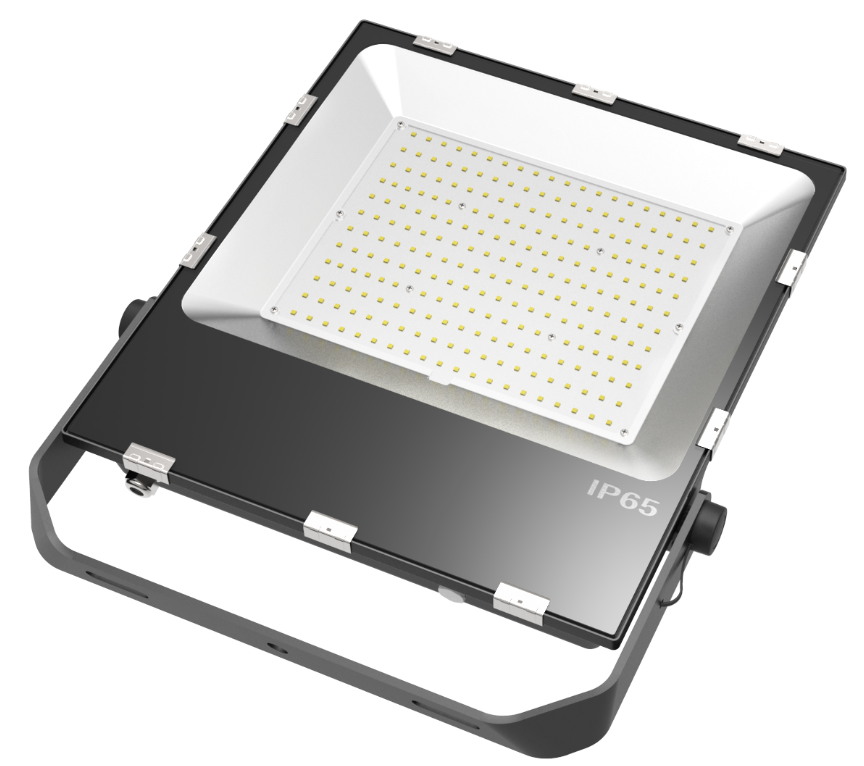

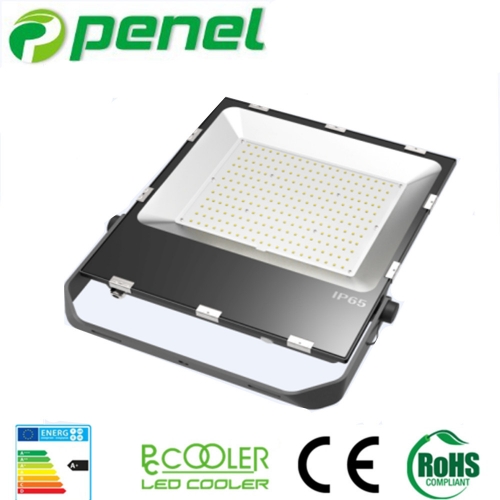

200W Slim Fashionable LED Flood Light

Item No.: FL-200W-NS01
** IP65 LED Flood Light 200Watt
** Input :AC 85-265V
** Lumen efficiency :about 125 LM/W
** CCT: 3000K/4000K/6000K
** Warranty : 3-5 years
** CE ,ROHS approved
Add to Inquiry

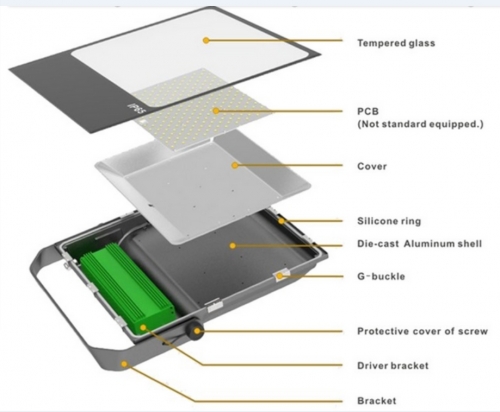

Description More HD photos specification sheet structure diagram

Product Body Parameters :

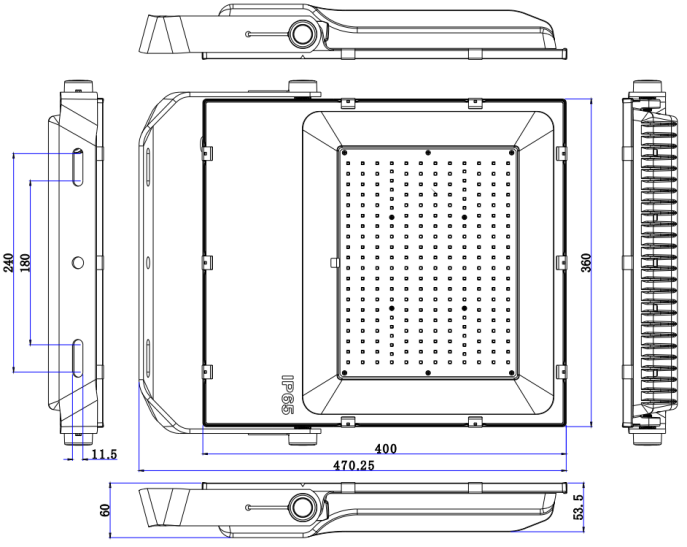

Dimension  : 470.25mm(L)*360mm(W)*60mm(H)


IP rating :  IP65

Housing color : black

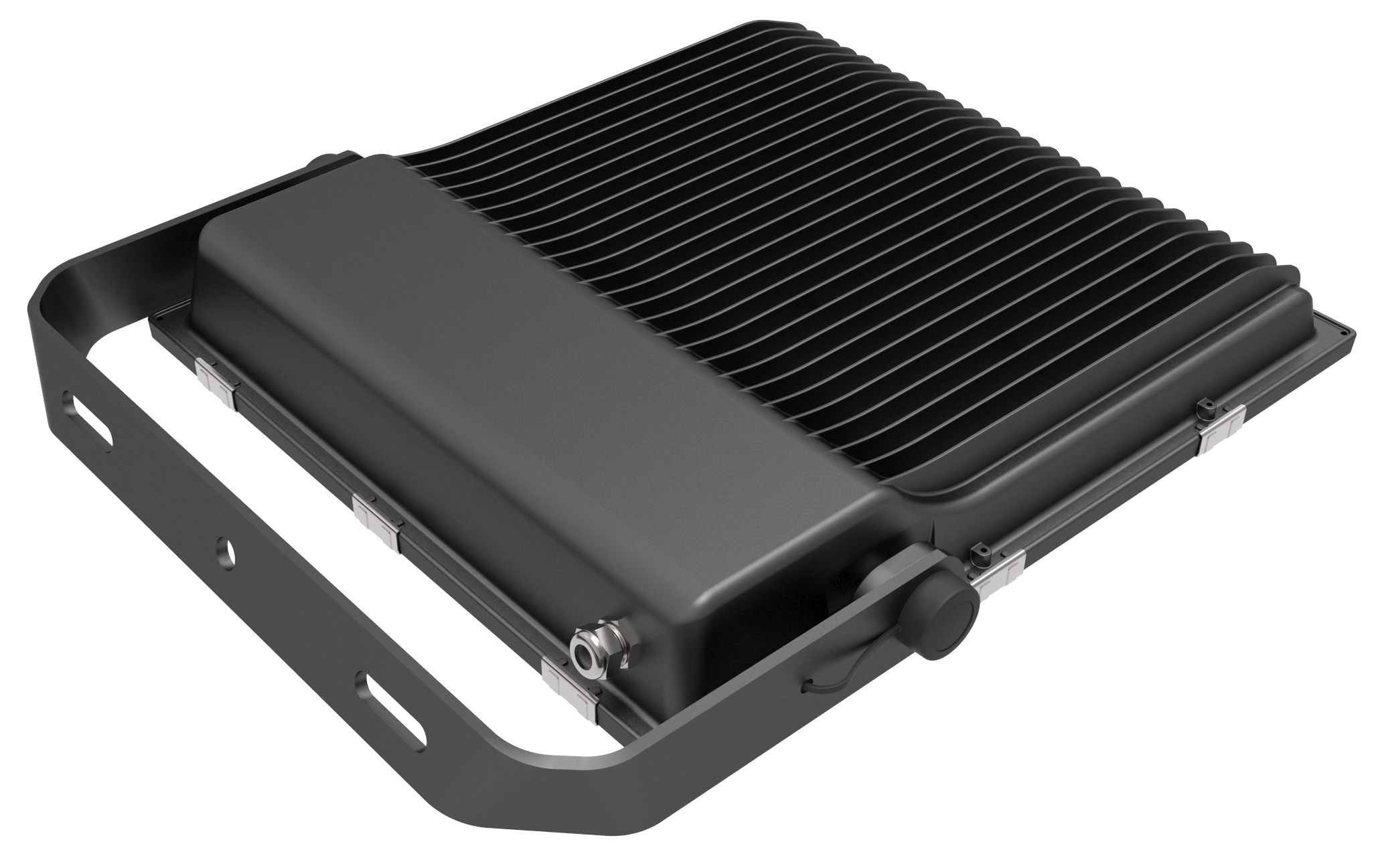

Housing material : Aluminum heat sink +tempered glass

Light source : 240pcs of SMD3030 chips

led /chip brand : Sanan / Epistar

Driver brand : PENEL / Meanwell



Electrical Parameters:

Input : AC 85-265V

Power : 200Watt


Driver efficiency : >90%



Optical Parameters:

Lumen efficiency: about 125 lm/w

Total lumen : about 25000lumens

Color temperature: 3000K /4000K/5000K/ 6000K

CRI: >80

Beam angle : 120°

Lifetime: 50,000 hr



Other function options:

Can add  Motion sensor (infrared sensor).

Can do 12/24VDC input



Certificate :CE-EMC, CE-LVD, ROHS

Warranty:  3 years (with PENEL driver)  / 5 years (with MW driver)

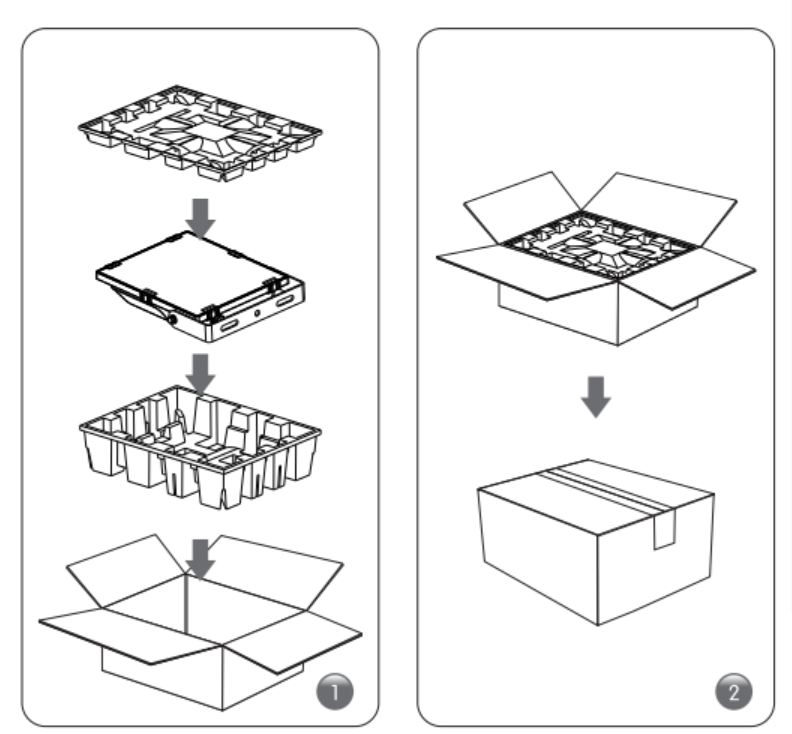

Packing Parameters:

1pcs /carton

Carton Size:55.5(long)*46(wide)*13.5(high)cm(K=K)

Packaging Details: offter OEM services.can print your own logo on product,

   can customize the retail box packing and other things.
