Product Body Parameters :
-
Modular structure, can be with 1 or 2 or 3 modules
-
Dimension: for 200Watt lamp:（L)438*（W)310* (H) 68mm (without installation kits)
-
IP rating: IP66
-
Housing color: black / silver optional
-
Housing: Aluminum
-
Light source: 2 modules/144pcs of CREE SMD3030 chips for each module
-
Driver Brand: Meanwell driver
Electrical Parameters:
• Input: 90-305VAC
• Power: 200Watt
• PF:>0.95
• Driver Efficiency: 92%
• THD: <15% at full load
• Resist Lightning surge : Line-Earth 6KV, Line-Line 4KV
Extra SPD(surge protection device) for 10KV is optional
Optical Parameters:
• Luminous Efficiency: 135-140 lm/w
• Lens beam angle: type 3 / type 5 optional
• Color Temperature: 3000K /4000K/5000K/5700K/6500K
• CRI:>70 or >80 or >90
Lifetime: 50,000 hrs
Warranty: 5 years
Application:

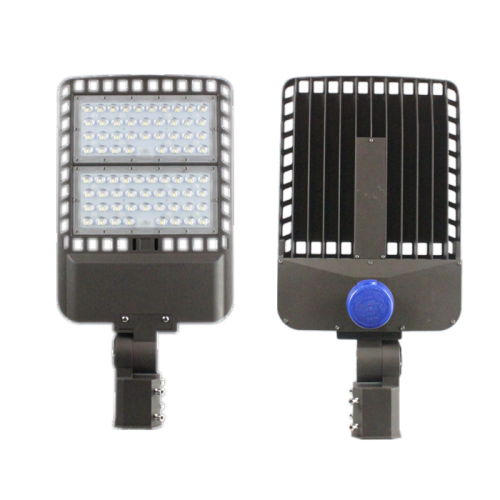

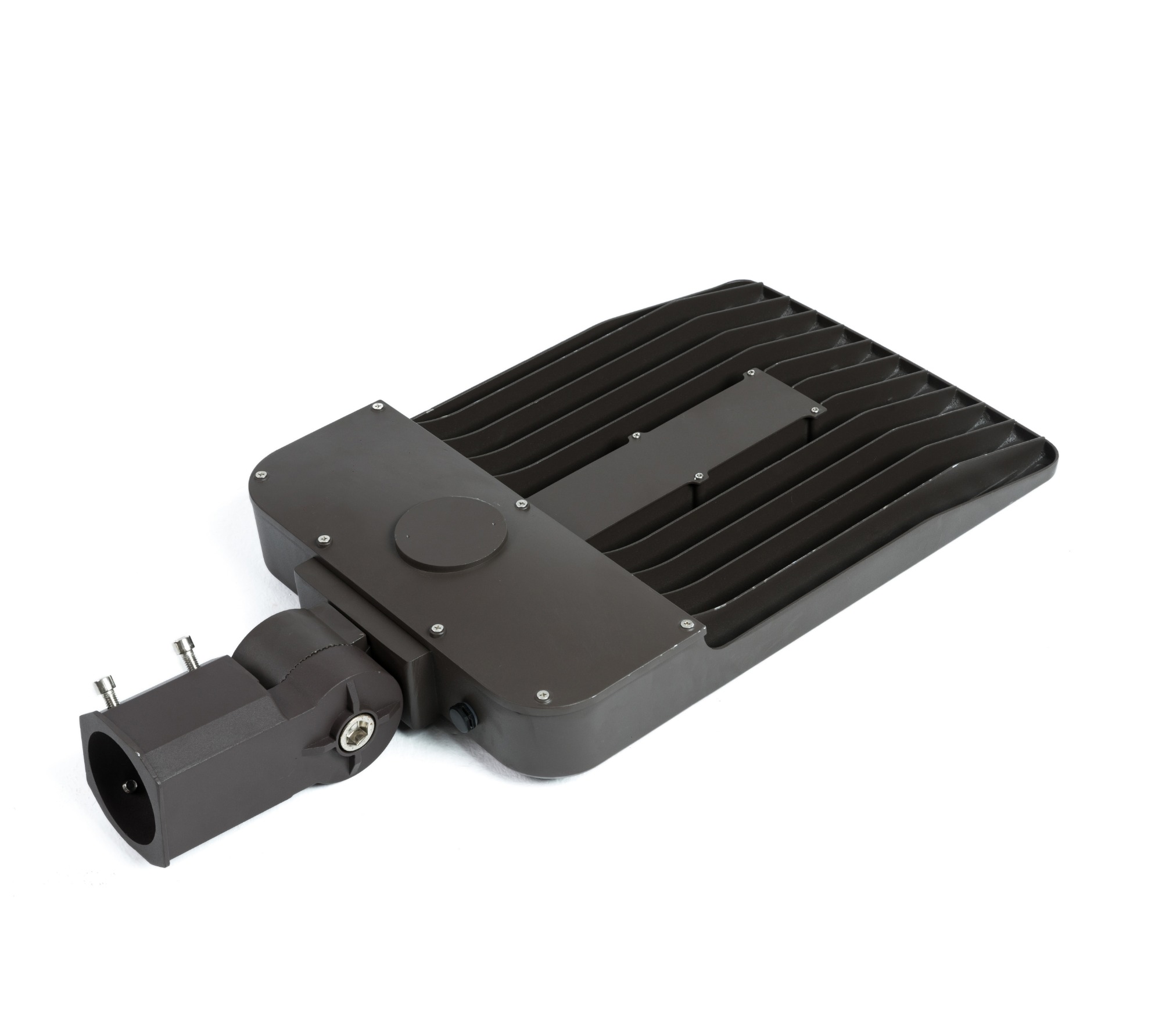

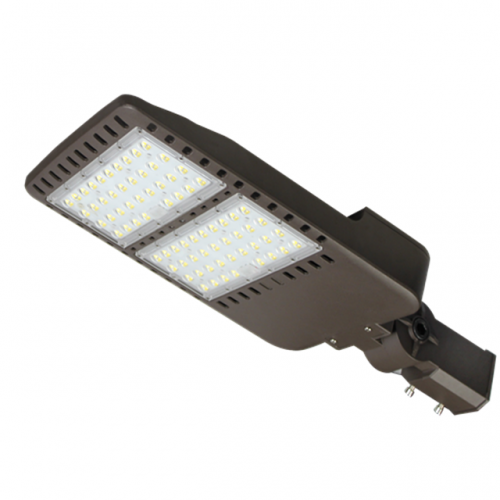

LED Shoebox Light can be widely used in urban roads, parking lot, high way, industrial areas, sidewalks, squares, parks, gardens, schools, residential areas etc.
