Product Body Parameters :
Product size : 400*400*82mm
Cut-hole size:340*340mm
IP rating : IP65
Housing color : Usually White
Housing : Aluminum
Connect Wire: L Power line N Null line G Earth line
Light source : 168pcs of SMD3030 P hilips chips
led /chip brand : P hilips
Driver brand : Mean Well
Electrical Parameters:
Input : AC90-305V or AC180-305V
Power : 150Watt
PF:>0.95
Driver efficiency : >90%
Optical Parameters:
Lumen efficiency:125 lm/w
Total lumen : 18750lm
Color temperature: 3000K/4000K/5000K/6500K
CRI:>70 or >80 or >90
Lens beam angle : 90/120/75*145/55*155 degrees optional .
Usually use 90 degrees .
Lifetime: 50,000 hr
3 installation way : recessed , surface mounting , hanging .
Certificate :CE-EMC, CE-LVD, ROHS ,TUV.
Warranty: 5 years
During the warranty period , if the led lights have any quality problems ,
we will surely slove the problems in the following way :
a. If the driver or chip is faulty , we will send new drivers or chips for free replacement .
b. If the lamp itself has problem , if convenient for customer to repair ,
we will send detailed instructions with pictures step by step ,
and if necessary send materials for free replacment, and help customer finally repair the lamp .
c. If the lamp itself has problem but difficult for customer to repair , we will send new lamp for free replacement .
d. If we found the faulty lamps quantity is more than normal level, we will assign engineers to go to buyer's company to check and repair all of the faulty lamps .
If the lamp is damaged due to user's misuse , for example : using outdoor , wrong installation, colliding or fall down ,etc ,
we can repair the lamp but need to charge the costs of materials replaced.
Aging test:

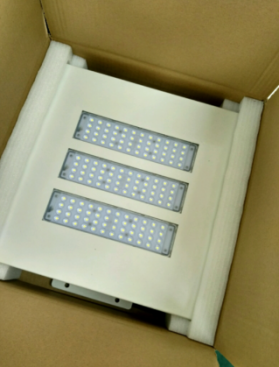

Packing Parameters:
1pcs /carton
Packing Dimension :460*460*150mm
Packaging Details: offer OEM services.can print your own logo on product,
can customize the retail box packing and other things.
50W 100w
150w 200W
250W

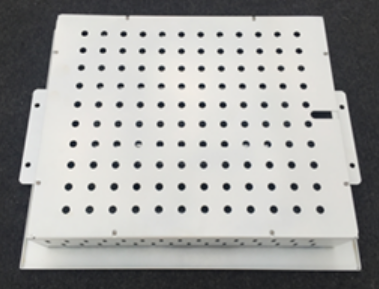

Back View

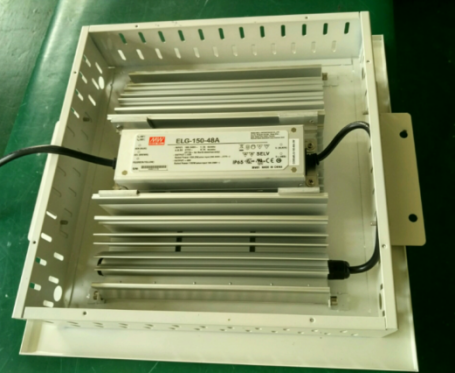

Use Mean Well driver
Application
