Product Body Parameters :
Dimension: 880mm(L)*350mm(W)*105mm(H)
Installation: Fit Diameter 60mm Pole
IP rating: IP65
Housing color: Lighter Grey, Darker Grey, Black
Housing Material: Aluminum Heat Sink + Glass Lens
Light Source: 3x (100W COB led to be used as 50W)
COB led Brand: Epistar / Bridgelux
Driver Brand: PENEL / Meanwell
Electrical Parameters:
Input: AC 85-265V or AC 90-305V(Meanwell)
Power: 150Watt
PF:>0.95
Driver Efficiency: >90%
THD: <15% at full load
Optical Parameters:
Lumen Efficiency: 105 or 130 lm/w (2 version optional)
Total Lumen : 15750 lm or 19500 lm (2 version optional)
Color Temperature: 3000K /4000K/5000K/6000K
CRI: >70

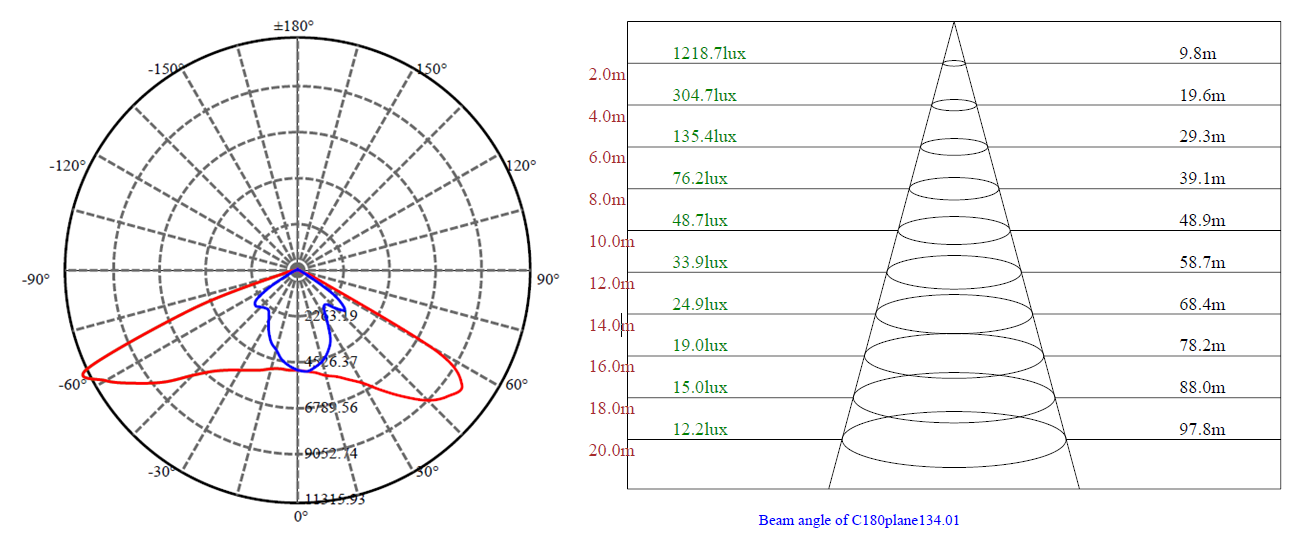

Beam Angle : 120°
Lifetime: 50,000 hr
Other Function Options:
Can Add Light Sensor (photocell sensor)
Can Do 12/24VDC Input
Certificate: TUV GS mark, CE-EMC, CE-LVD, ROHS
Warranty: 3 years (with PENEL driver) / 5 years (with MW driver)
Packing Parameters:
1 Unit /Carton
Carton Dimension: 46cm*105cm*17cm
Packing Filler: EPE Protection Packing
